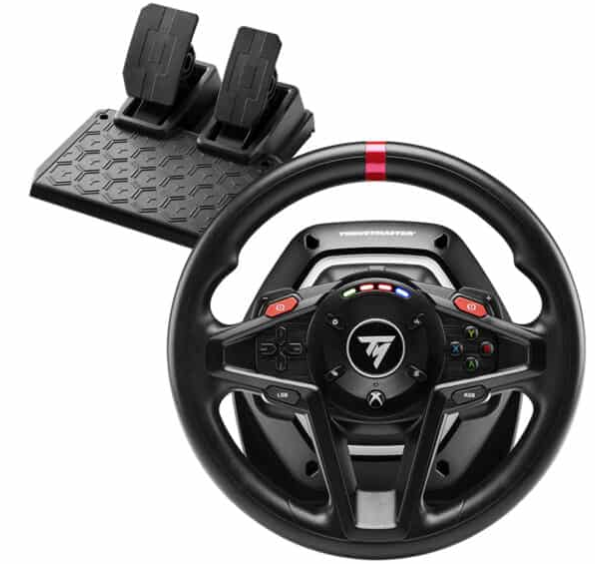

T128 (Xbox One/Xbox Series/PC)
Product number : 4469027
Warning
Your wheel’s Firmware version appears in the top right in the Control Panel’s tabs. Firmware: 5.04 is the latest version.
Manual
Drivers
- PC - DRIVERS FORCE FEEDBACK [Package 2024_TTRS_1.exe] + FirmwarePC
- Release notes
PC - DRIVERS FORCE FEEDBACK [Package 2024_TTRS_1.exe] + Firmware
System Requirement: Windows 10 / 11
This driver package is compatible with these racing wheels:
- T818- T-GT (on PC, the USB sliding switch on the T-GT racing wheel base must always be set to the OTHER position!)- TS-XW RACER- TS-PC RACER- TX- TMX- T500- T300 (on PC, the USB sliding switch on the T300 racing wheel base must always be set to the PC-PS3 position!)- T248-PS- T248-X- T128-PS- T128-X- T150 (on PC, the USB sliding switch on the T150 racing wheel base must always be set to the PS3 position!)- BT LED DISPLAY- TM Sim Hub
Changes made in new driver version [2024_TTRS_1]:
- Fixed conflicts (and some Force Feedback issues on PC) with the latest Windows OS Build [v22631.3085 - Update KB5034204] and the latest modification of the Microsoft GameInput service.
**WHEEL'S FIRMWARE VERSION**
== Your wheel's Firmware version appears in the top right in the Control Panel's tabs:
- T818 Racing Wheel: V6.01 (for the base) and V2.12 (for the quick release adapter)- T-GT Racing Wheel: V10 (for the base) and V32 (for the rim)- T300 RS Racing Wheel: V34- T248-PS Racing Wheel: V2- T248-X Racing Wheel: V2.04- T128-PS Racing Wheel: V4.76- T128-X Racing Wheel: V5.04- T150 Racing Wheel: V35- TS-XW Racer (USB): V8.07- TX Racing Wheel: V58.06- TMX Racing Wheel: V20- TS-PC Racer: V13- T500 RS Racing Wheel: V47- TM Sim Hub: V1.12 (Main) - V1.09 (CoMCU)- BT LED Display: V1.17 (Main) - 1.18 (Bluetooth)- Formula Wheel Add-On Ferrari SF1000 Edition: V6.27
**IMPORTANT**:
- IF A DRIVER PACKAGE FOR YOUR PRODUCT IS ALREADY INSTALLED ON THE COMPUTER, RUNNING THE PACKAGE INSTALLATION ONCE WILL ACTUALLY UNINSTALL THE PREVIOUS VERSION.
IT WILL THEN BE NECESSARY TO RUN IT AGAIN TO PROCEED TO THE INSTALLATION OF THE NEW VERSION
- DO NOT CONNECT the racing wheel to your PC before being prompted to do so.- DO NOT CLICK in any Windows-specific panes that may appear during the update process.- RESTART THE COMPUTER once the package setup is complete.
**INSTALLATION**:
1- Double-click the installation file (2024_TTRS_1.exe) to proceed with the installation.
2- Follow the instructions displayed onscreen.
3- When done:
* Select Start/All Apps/Thrustmaster/FFB Racing Wheel/Control Panel. (Windows 10/11)
* Or, your keyboard, click simultaneously on the Windows + R keys. The Run window opens, type "joy.cpl", then click OK
The racing wheel appears onscreen with the status indication OK
4- In the Control Panel, click Properties to configure your racing wheel:
* Test Input: Enables you to test the buttons, the D-Pad, the Wheel, the Pedals and to configure wheel Rotation Angle.
* Test Forces: Enables you to test 12 force effects.
* Gain Settings: Enables you to configure the Force Feedback.
Click on OK to save your settings and exit the Control Panel.
You are now ready to race!
**GENERAL NOTES**
# About the Formula Wheel Add-On Ferrari SF1000 Edition, the Ferrari 488 GT3 Wheel Add-On and the other future wheels:
== These wheels are now shown as a GENERIC ROUND WHEEL in the CONTROL PANEL. This change is only visual in the Control Panel and no incidence in games.
This change is visible using the TX / T300 / TS-PC / TS-XW / T-GT / T-GT II bases on PC.
# About F1 22 - PC:
== It is recommended to disconnect your other USB gaming devices (such as USB shifter, USB handbrake, USB gamepad, etc.) in order to avoid any conflicts with USB wheels and/or USB pedal sets.
== If you are using the old Ferrari F1 Wheel Add-On simultaneously with a T-LCM Pedals set connected via USB, you must select NORMAL Mode (and not ADVANCED MODE) in the Thrustmaster Control Panel.
You can select ADVANCED MODE only if the T-LCM Pedals set is connected directly to the Thrustmaster wheel base with the RJ12 cable.
# About the old FERRARI F1 racing wheel:
== On PC, the Ferrari F1 racing wheel is recognized and appears onscreen under the name Thrustmaster T-GT Racing Wheel or TS-XW RACER (USB)
or TS-PC RACER or Thrustmaster T500 RS Racing Wheel, Thrustmaster TX Racing wheel, or Thrustmaster T300 RS Racing Wheel.
This is the "Normal Mode", offering 13 action buttons + D-Pad (in this mode, the D-Pads, shifters and L3/R3 buttons are combined).
In this mode, the 2 rotary encoders emulate the D-Pad's 4 main directions. They can therefore be used to alter a car's settings (engines, tires, fairing, etc.).
To use them, if required, access your game's Control options and alter them as required.
== On PC (only), the racing wheel can be configured in "Advanced Mode" to offer 25 action buttons + 1 D-Pad
(in this mode, the 2 rotary encoders, 2 D-Pads, 4 shifters and 4 L3/R3 buttons are configured individually). To do so, in the Control Panel, select the Advanced Mode option.
The racing wheel appears onscreen under the name Ferrari F1 Wheel Advanced T-GT or Ferrari F1 Wheel Advanced TS-XW Racer
or Ferrari F1 Wheel Advanced TS-PC Racer or Ferrari F1 wheel Integral T500 or Ferrari F1 wheel Advanced TX or Ferrari F1 wheel Advanced T300.
# General comments:
- For most games: in the OPTIONS/CONTROLS/FORCE FEEDBACK settings, Force Feedback effects must be set to "POSITIVE = + Values" or "NON-REVERSED".
**CHANGES MADE IN PREVIOUS DRIVER VERSIONS**:
[Package 2023_TTRS_4]:
- Change in control panel:
* To improve compatibility of CPL with steering wheel, the Formula Wheel Add-On Ferrari SF1000 Edition + the Ferrari 488 GT3 Wheel Add-On + the other future wheels are now shown as a GENERIC ROUND WHEEL in the CONTROL PANEL.
This change is only visual in the Control Panel and no incidence in games. This change is visible using the TX / T300 / TS-PC / TS-XW / T-GT / T-GT II bases on PC.
* Fixed few issues in the THRUSTMASTER CONTROL PANEL
- T818 firmware update:
* T818 base - new Firmware V6.01:
== Now, the front LED of the T818 react based on the TELEMETRY DATA provided by games (limited to FLAG + RPM + PIT).
Process to activate this telemetry and list of compatible games available on https://support.thrustmaster.com/product/t818-en/ in GAMES SETTINGS
IMPORTANT ABOUT THE TELEMETRY DATA ON THE T818 BASE:
# In order to take advantage of the tellemetry functions, it is imperative that you install an offical Thrustmaster wheel on the T818 base and that you update your base’s firmware with the latest firmware version.
# For now the process to select the telemetry pattern and to adjust the LED brightness is working with all Thrustmaster wheels except with the TM OPEN WHEEL
# On iRacing, in OPTIONS of the game, CONTROL LCD WHEEL DISPLAYS must be activated for the functionality of the Telemetry.
== Add Ferrari 488 GT3 Wheel Add-On’s compatibility with T818
== Firmware improvement and bug fixes
- Add Ferrari 488 GT3 Wheel Add-On’s support:
!Important! It is mandatory to install the latest Firmware on your Thrustmaster Base:
[V58.06 for TX] - [V34 for T300] - [V8.07 for TS-XW] - [V10 for T-GT] - [V13 for TS-PC] - [V6.01 for T818]
- Formula Wheel Add-On Ferrari SF1000 Edition firmware update:
* Formula Wheel Add-On Ferrari SF1000 Edition - new Firmware V6.27:
== Fixed possible freeze issues (detected previously on PC / PS4™ / PS5™)
== Added with EA SPORTS™ F1® 23, in NATIVE mode (PC / PS4 / PS5), four screens corresponding to the game (General / Tire 1 / Tire 2 / Engine)
== Added with EA SPORTS™ F1® 23, in UDP via Wi-Fi mode (Xbox), one screen corresponding to the game (General)
== Added UDP support via Wi-Fi with EA SPORTS™ F1® 23 – Xbox version:
# in the options of this game, in SETTINGS / TELEMETRY SETTINGS / UDP Send Rate: select 120 Hz and in UDP Format: select 2023
# in older versions (F1® 22 – Xbox / F1 2021 - Xbox / F1 2020 – Xbox) in UDP Format: select 2020
== UDP GAMES tab was removed from the wheel’s screen menu (UDP 20777 for F1 games is now automatically selected)
!Important! It is mandatory to install the latest Firmware on your Thrustmaster Base:
[V58.06 for TX] - [V34 for T300] - [V8.07 for TS-XW] - [V10 for T-GT] - [V13 for TS-PC] - [V6.01 for T818]
- Thrustmaster Xbox Force Feedback wheels firmware update:
* TMX - new Firmware V20
* T128-X - new Firmware V5.4
* T248-X - new Firmware V2.04
== Force Feedback improvement
[Package 2023_TTRS_3]:
- Improvements, on PC (for all Thrustmaster PC Wheels) of the self-calibration phase- Added new firmware for all Thrustmaster Xbox Force Feedback wheels:
* TMX - new Firmware V19
* T128-X - new Firmware V5.03
* T248-X - new Firmware V2.03
* TX - new Firmware V58.06
* TS-XW - new Firmware V8.07
== Fixed a force feedback major issue in upcoming Xbox games = it is highly recommended to update your steering wheel base with this new firmware version!
- Added new firmware for the T128-PS Racing Wheel:
* T128-PS - new Firmware V4.76:
== The PlayStation GAME MODE is now set by default on PLAYSTATION STANDARD COMPATIBILITY setting = BLUE Led
- Added new firmware for the T818 base:
* T818 base - new Firmware V5.72:
== Improvement: New self-calibration phase (when the base is turned on) + auto-spring effect removal
== New feature: T818 Control Panel Slider in Settings [ADJUSTMENT OF THE FORCE FEEDBACK LINEARITY]
++ LINEARITY = 0% : Is fully linear, it is the same setting as in the previous firmware V5.20
++ LINEARITY > 0% : This reduces the dynamic range of the small forces, a lower setting will be close to linearity, a higher setting will lower small force leading to a quieter steering in straight line (as example : it could reduce fatigue during long distance single seater race)
== For safety, the Force Feedback is now stopped if a T818 Quick Release Adapter or a T818 Native Connector is not attached to the base
== Other improvements
- Added new firmware for the T818 Quick Release Adapter (CAN):
* T818 CAN - new Firmware V2.12:
== Allow to update the SF1000 rim even if a T818 QUICK RELEASE ADAPTER is attached (when the SF1000 rim is directly connected to the PC with the USB to USB-C cable)
[Package 2023_TTRS_2]:
- Fixed conflicts (and some Force Feedback issues on PC) with the latest modification of the Microsoft GameInput service.
[Package 2023_TTRS_1]:
- Added new firmware for the T818 base:
* T818 base - new Firmware V5.20:
- Fixed a force feedback issue found in previous version V5.18 (the DAMPER slider available in the options of games such as ASSETTO CORSA COMPETIZIONE, F1, and other games, was not functional and generated exaggerated and/or unwanted wobbles on the wheel / SPRING effects were not functional). It’s now solved. After installing the new firmware it may be necessary to adjust the DAMPER slider in the options of these games.- Fixed the bootloader issue in previous version V5.14. It is now possible to update the firmware.- Fixed an issue in the Thrustmaster Firmware Updater software for TMX Racing Wheel and T150 Racing Wheel.
[Package 2022_TTRS_2]
- Added support for the T818 Racing Wheel- Fixed an issue (for all Thrustmaster Racing Wheels) with some PC Games (WRC GENERATIONS 10 and some others)
[Package 2022_TTRS_1]
- Added support for the T128 Racing Wheels- Fixed some compatibility issues with F1 22 - PC
* When used with a T-LCM Pedals set connected via USB simultaneously with a Thrustmaster wheel base.
* When used with a T-LCM Pedals set connected via USB simultaneously with a base from another brand (such as Logitech, Fanatec, etc.).
* When used with a Thrustmaster wheel base (even if it is not a Force Feedback wheel, T80 racing wheel, Ferrari Racing Wheel Red Legend Edition, e.g.).
[Package 2021_TTRS_4]:
- Added T-BOOST function on PC (for all Thrustmaster Racing Wheels)
* The T-BOOST function improves on PC your performance by offering a more accurate feeling of the road
- Fixed a force feedback issue (for all Thrustmaster Racing Wheels) with F1 2021 - PC- Added new firmware for the T248-PS Racing Wheel:
* T248-PS - new Firmware V2: added a new features with the MODE BUTTON (FORCE function)
* The FORCE function for the T248 screen allows you to adjust in real time (= directly in race) all the racing wheel's force effects from 20% to 100%.
- Added support for the T248-X Racing Wheel- Added new firmware for the T248-X Racing Wheel:
* T248-X - new Firmware V2: fixed an issue with the MODE BUTTON and the FORCE function.
- Added new firmware for the TMX Racing Wheel:
* TMX - new Firmware V17: fixed a force feedback issue with F1 2021 - XBOX
- Added new firmware for the T300 Racing Wheel:
* T300 - new Firmware V34: Led color change + New method for inverting your pedals + Switching between PS5 mode & PS4 mode
* LED Colour Change: on PC, the LED color is now GREEN instead of red / When the pedals are successfully inversed, the LED flashes once every 8 seconds
* New method for inverting your pedals: Hold MODE + L3 + R3 for 5 seconds for pedals inversion
* Switching between PS5 mode and PS4 mode: Press and hold the MODE button for 5 seconds to update PS4 mode (ORANGE LED) to PS5 mode (RED LED).
[Package 2021_TTRS_3]
- Fixed an issue (for all Thrustmaster Racing Wheels) with some PC Games (WRC 10 - Euro Truck Simulator 2 - American Truck Simulator - and some others)- Fixed an issue in Thrustmaster Firmware Updater software- Added support for the T248-PS Racing Wheel- Added new firmware for the T248-PS Racing Wheel:
* T248-PS - new Firmware V1.84:
- Added some features with the MODE BUTTON (AUTO in ROT°)- Fixed an issue with the DISPLAY BUTTON- Fixed an issue with the RESET feature- Fixed an issue with the 2 magnetic paddle shifters (Up and Down)- Fixed an issue with the T3PM pedal set (when connected to the T248 base)- Fixed an issue with the T-LCM pedal set (when connected to the T248 base)
[Package 2021_TTRS_2]
- Added new firmware for many Thrustmaster Force Feedback wheels.
* T-GT: new Firmware V10 (for the base)
- Formula Wheel Add-On Ferrari SF1000 Edition screen protocol open for new NATIVE upcoming games !Important! Also requires to install new Firmware V5.51 on the Formula Wheel Add-On Ferrari SF1000 Edition
* T300: new Firmware V33
- Formula Wheel Add-On Ferrari SF1000 Edition screen protocol open for new NATIVE upcoming games !Important! Also requires to install new Firmware V5.51 on the Formula Wheel Add-On Ferrari SF1000 Edition
* TS-XW: new Firmware V8
- Formula Wheel Add-On Ferrari SF1000 Edition screen protocol open for new NATIVE upcoming games !Important! Also requires to install new Firmware V5.51 on the Formula Wheel Add-On Ferrari SF1000 Edition
* TX: new Firmware V58
- Formula Wheel Add-On Ferrari SF1000 Edition screen protocol open for new NATIVE upcoming games !Important! Also requires to install new Firmware V5.51 on the Formula Wheel Add-On Ferrari SF1000 Edition- Fixed an issue with the automatic return to the center of the steering wheel in the Xbox Series X|S consoles menu
* TS-PC: new Firmware V13
- Formula Wheel Add-On Ferrari SF1000 Edition screen protocol open for new NATIVE upcoming games !Important! Also requires to install new Firmware V5.51 on the Formula Wheel Add-On Ferrari SF1000 Edition
* Formula Wheel Add-On Ferrari SF1000 Edition: new Firmware V5.51
- Improved display of some information in F1 2020 and F1 2021 in NATIVE mode (PC / PS4 / PS5)- Screen protocol open for new NATIVE upcoming games
!Important! Also requires to install new Firmware on Thrustmaster Bases: [V33 for T300] - [V10 for T-GT] - [V13 for TS-PC] - [V58 for TX] - [V8 for TS-XW]
[2021_TTRS_1]
- Added new firmware for many Thrustmaster Force Feedback wheels.
* T-GT: new Firmware V9 (for the base)
- Added support for the Formula Wheel Add-On Ferrari SF1000 Edition
* T300: new Firmware V32
- Added support for the Formula Wheel Add-On Ferrari SF1000 Edition- Fixed a compatibility issue on PlayStation 3
* T150: new Firmware V35
- Improved compatibility with the TH8A Shifter (when the shifter is connected to the wheel's DIN connector).
!Important! Also requires to install new Firmware V29 on the TH8 Shifter
- Fixed a compatibility issue on PlayStation 3
* TS-XW: new Firmware V7
- Added support for the Formula Wheel Add-On Ferrari SF1000 Edition- Improved Force Feedback in some PC games- Improved Force Feedback in some Xbox Series X|Series games
* TX: new Firmware V57
- Added support for the Formula Wheel Add-On Ferrari SF1000 Edition- Improved Force Feedback in some PC games- Improved Force Feedback in some Xbox Series X|Series games
* TS-PC: new Firmware V12
- Added support for the Formula Wheel Add-On Ferrari SF1000 Edition
[2020_TTRS_2]
- Added new firmware for many Thrustmaster Force Feedback wheels:
* T-GT: Firmware V7
* T300: Firmware V31
* T150: Firmware V21
* TS-XW: Firmware V6
* TX: Firmware V56
* TMX: Firmware V15
* TS-PC: Firmware V11
!Warning!: with these new firmware, the racing wheel's bases now handles (and detects) differently the type of pedal set connected (via RJ12) to the base.
Check out the important note and information here: http://ts.thrustmaster.com/download/accessories/Manuals/T_LCM/T-LCM_RJ12-pedal_set_mode_detection.pdf
[2020_TTRS_1]
- Added new firmware for many Thrustmaster Force Feedback wheels (and support for the T-LCM Pedals when connected to the RJ12 port of these bases):
* T-GT: Firmware V6 (for the base)
* T300: Firmware V30
* T150: Firmware V11
* TS-XW: Firmware V5
* TX: Firmware V55
* TMX: Firmware V11
* TS-PC: Firmware V10
- Added new firmware for the TM Sim Hub (solved some disconnect issues with the TSS Handbrake and with the TH8A Shifter):
* TM Sim Hub: V1.12 (Main) - V1.09 (CoMCU)
[2019_TTRS_1]
- Fixed an issue with DiRT RALLY 2.0 - PC
[2018_TTRS_3]
- Added new firmware for the TS-XW RACER and the TS-PC RACER Racing Wheel:
* TS-XW RACER: Firmware V4
* TS-PC RACER: Firmware V9 (for the base)
[2018_TTRS_2]
- Added support for TM Sim Hub- Added new firmware for the T-GT, T300 and TX Racing Wheel:
* T-GT racing wheel: Firmware V5 (for the base) and V32 (for the wheel)
* T300-series racing wheels: Firmware V29
* TX Racing Wheel: Firmware V54
[2018_TTRS_1]
- Add new firmware for the TS-PC Racer & for the TX Racing Wheel
(added PC compatibility of the TSS Handbrake in sequential mode when it is connected to the DIN port of the TS-PC Racer and TX bases.
In this case the sequential mode is now associated with the wheel's UP and DOWN paddle shifters.
This functionality is already available in the latest firmware of the T-GT base, TS-XW Racer base and T300 base.
Please note that this functionality cannot be supported in the T150 and TMX bases.
[2017_TTRS_7]
- Added new firmware for many Thrustmaster Force Feedback wheels
(support for the Ferrari 250 GTO Wheel / Support for the TH8A Shifter in Gran Turismo Sport when connected to the DIN port of the T-GT base
/ Other minor improvements for all bases)
[2017_TTRS_6]
- Added new firmware for many Thrustmaster Force Feedback wheels
(support for new detachable wheels: TM Sparco® P310 Competition / TM RALLY Sparco® R383 / TM Open Wheel)
[2017_TTRS_5]
- Solved a force feedback issue with TS-PC RACER and TX racing wheels in Forza Motorsport 7 and Forza Horizon 3 for PC
[2017_TTRS_4]
- Solved a force feedback issue with T500RS in DiRT® 4 and DiRT Rally™ for PC
[2017_TTRS_1]
- Addded support for T-GT & TS-XW RACER racing wheels
Firmware
- Firmware T128 (Xbox One/XBox Series/PC) (Xbox One/XBox Series/PC) - Update Procedure [System Requirement: Windows® 10 / 11]PC
- Release notes
Firmware T128 (Xbox One/XBox Series/PC) (Xbox One/XBox Series/PC) - Update Procedure [System Requirement: Windows® 10 / 11]
== Force Feedback improvement
**NOTE**: Your wheel’s Firmware version appears in the top right in the Control Panel’s tabs
NB: Changes made in previous firmware versions:
* Firmware version [V5.03]
== Fixed a force feedback major issue in upcoming Xbox games
* Firmware version [V5.00]
== Release version
Buttons mapping
- T128 (Xbox One/XBox Series/PC) GENERIC mappingPC Xbox One™ Xbox Series X|S™
-
T128 - PC - GENERIC MAPPING PC
-
T128 - XBOX ONE™ / XBOX SERIES X|S™ - GENERIC MAPPINGXbox One™ Xbox Series X|S™
T128 - PC - GENERIC MAPPING
PC
T128 - XBOX ONE™ / XBOX SERIES X|S™ - GENERIC MAPPING
Xbox One™ Xbox Series X|S™
Games settings
- T128 (Xbox One/XBox Series/PC): LSB & RSB buttons: list of compatible Xbox One / Xbox Series X|S gamesXbox One™ Xbox Series X|S™
- T128(Xbox One/XBox Series/PC) - Xbox One™ Games list / Liste des jeux / Liste der spiele Xbox One™
- T128(Xbox One/XBox Series/PC) - Xbox Series X|S™ Games list / Liste des jeux / Liste der spieleXbox Series X|S™
- T128(Xbox One/XBox Series/PC): HANDBRAKE buttons: list of compatible Xbox One / Xbox Series X|S games Xbox One™ Xbox Series X|S™
- T128(Xbox One/XBox Series/PC): LIST OF GAMES COMPATIBLE WITH THE 4 RPM LEDsPC Xbox One™ Xbox Series X|S™
- WHEELS - Compatibility with CLOUD GAMING and STREAMING PC PS4™ PlayStation®5 Xbox One™ Xbox Series X|S™
-
Mapping – LE MANS® ULTIMATE (PC) – T128-X PC
-
SimTask Steering Kit & T128 Suggested Mapping – American Truck Simulator (PC)PC
-
SimTask Steering Kit & T128 Suggested Mapping – Bus Simulator 21 (PC)PC
-
SimTask Steering Kit & T128 Suggested Mapping – Construction Simulator (PC)PC
T128 (Xbox One/XBox Series/PC): LSB & RSB buttons: list of compatible Xbox One / Xbox Series X|S games
EN - List of Xbox One and Xbox Series X|S games compatible with the LSB and RSB buttons of the T128 racing wheel.
FR - Liste des jeux Xbox One et Xbox Series X|S compatibles avec les boutons LSB et RSB du volant T128.
DE - Liste der Xbox One- und Xbox Series X|S-Spiele, die mit den LSB- und RSB-Tasten des T128-Rennlenkrads kompatibel sind.
简体中文 – 与 T128 方向盘的 LSB 和 RSB 按钮相兼容的 Xbox One 和 Xbox Series X|S 游戏列表。
- ASSETTO CORSA COMPETIZIONE – XBOX SERIES X|S- EA SPORTS™ F1® 23 – Xbox One™- EA SPORTS™ F1® 23 – Xbox Series X|S™- EA SPORTS™ F1® 24 – Xbox One™- EA SPORTS™ F1® 24 – Series X|S™- F1® 22 – Xbox One™- F1® 22 – Xbox Series X|S™- NASCAR 21: Ignition – Xbox One™- NASCAR 21: Ignition – Xbox Series X|S™- THE CREW™ MOTORFEST - Xbox Series X|S™
(On this game you must turn on the official gamepad controller in addition to the wheel)
- TEST DRIVE UNLIMITED – Solar Crown – Xbox Series X|S™- Many other games coming very soon
T128(Xbox One/XBox Series/PC) - Xbox One™ Games list / Liste des jeux / Liste der spiele
EN - Your racing wheel is compatible with the following Xbox One games:
FR - Votre volant est compatible dans les jeux Xbox One suivants :
DE - Ihr Rennlenkrad ist mit den folgenden Xbox One -Spielen kompatibel:
简体中文 – 此方向盘兼容以下 Xbox One 游戏:
- ASSETTO CORSA- ASSETTO CORSA COMPETIZIONE- BURNOUT™ Revenge – Xbox 360 backward compatibility
(on this game we recommend to set the wheel's angle of rotation at 270° or 360°)
- BUS SIMULATOR 18 (on this game, with this wheel, there is no Force Feedback)- BUS SIMULATOR 21 Next Stop (*)- CarX Drift Racing Online- Dakar Desert Rally- DiRT RALLY™- DiRT RALLY 2.0™ - DiRT® 3 – Xbox 360 backward compatibility - DiRT® 4 - DiRT® 5- DRIFTCE (!**!) - New firmware required- EA SPORTS™ F1® 23 (!**!) - New firmware required- FARMING SIMULATOR 15 (*) - FARMING SIMULATOR 17 (*) - FARMING SIMULATOR 19 (*) - FARMING SIMULATOR 22 (*)- FIA Truck Racing Championship- FORZA MOTORSPORT® 5 - FORZA MOTORSPORT® 6 - FORZA MOTORSPORT® 7- FORZA HORIZON™ – Xbox 360 backward compatibility- FORZA HORIZON™ 2 - FORZA HORIZON™ 3 - FORZA HORIZON™ 4 - FORZA HORIZON™ 5- F1® 2014 – Xbox 360 backward compatibility (*)
(on this game we recommend to reduce wheel's angle of rotation and to adjust Advanced Wheel Settings)
- F1® 2015 - F1® 2016 - F1® 2017 - F1® 2018 - F1® 2019 - F1® 2020 - F1® 2021 - F1® 22- Gas Guzzlers Extreme (on this game the brake is set on the clutch pedal)- GRAVEL- GRID™ - GRID™ 2 – Xbox 360 backward compatibility - GRID™ AUTOSPORT – Xbox 360 backward compatibility- GRID™ Legends (on this game buttons & axes of the T128 must be configured manually in OPTIONS / CONTROLS / Xbox Input Wheel / Edit Device)- LAWN MOWING SIMULATOR (*)- MONSTER TRUCK CHAMPIONSHIP- MudRunner: A Spintires game (*)- Nascar Heat Evolution - Nascar Heat 2 - Nascar Heat 3 - Nascar Heat 4 - Nascar Heat 5- NASCAR 21: Ignition (On this game you must turn on the official gamepad controller in addition to the wheel)- NEED FOR SPEED™ PAYBACK - NEED FOR SPEED™ HEAT- On The Road The Truck Simulator (*)- OVERPASS- PROJECT CARS - PROJECT CARS 2 - PROJECT CARS 3- Ridge Racer™ 6 – Xbox 360 backward compatibility
(On this game we recommend to set the wheel's angle of rotation at 270°& turn on the official gamepad controller, in addition to the wheel, in order to get Force Feedback effects on the wheel)
- SEBASTIAN LOEB RALLY EVO- SnowRunner- SRX: The Game- Super Street: The Game- STREET OUTLAWS 2 - Winner Takes All- THE CREW™ - THE CREW™ WILD RUN- THE CREW™ MOTORFEST (!**!) - New firmware required- TONY STEWART’S ALL-AMERICAN CAR RACING - Tony Stewart's Sprint Car Racing- TRUCK DRIVER- Truck and Logistics Simulator (*)- V-RALLY 4- World of Outlaws: Dirt Racing- WRC GENERATIONS- WRC 5 - WRC 6 - WRC 7 - WRC 8 - WRC 9 - WRC 10- WRECKFEST- XENON RACER
(In this game you can adjust the STEERING WHEEL ANGLE from 40° to 180° in SETTINGS / GAME / STEERING WHEEL ANGLE)
(*) EN - In this game you can use the wheel and the console’s official controller at the same time (to get the most out of all available functions). No Force Feedback effects in this game, but automatic re-centering of the wheel is enabled through 900° for perfect playability and enhanced realism.
(*) FR - Dans ce jeu vous pouvez utiliser simultanément le volant avec la manette officielle de la console (pour profiter pleinement de toutes les fonctions). Pas d’effets Force Feedback dans ce jeu, mais le retour au centre automatique du volant est activé sur 900° pour une parfaite jouabilité et plus de réalisme.
(*) DE - In diesem Spiel können Sie das Lenkrad und die offiziellen Controller zur gleichen Zeit nutzen (um das Beste aus allen verfügbaren Funktionen herauszuholen). Keine Force Feedback Effekte in diesem Spiel, aber die automatische Re-Zentrierung des Lenkrads ist über 900° für eine perfekte Spielbarkeit und verbesserten Realismus aktiviert.
(*) 简体中文 – 在此游戏中,您可以同时使用本方向盘和游戏主机的官方游戏手柄(以充分利用所有可用的功能)。此游戏中没有力反馈效应,但方向盘能够自动对中,旋转角度可达 900°,带来出色的可玩性和增强的真实感。
(!**!) EN - In order to take full advantage of the Force Feedback in this game,
it is imperative that you update your racing wheel's firmware to the latest version available
[ T128 = V5.03 / TMX = V19.00 / T248 = V2.03 / TX = V58.06 / TS-XW= V8.07 ]
(!**!) FR - Dans ce jeu, pour profiter pleinement du Force Feedback,
il est impératif d’avoir mis à jour le firmware de votre volant avec la dernière version disponible
[ T128 = V5.03 / TMX = V19.00 / T248 = V2.03 / TX = V58.06 / TS-XW= V8.07 ]
(!**!) DE - Um die Vorteile des Force Feedbacks in diesem Spiel voll ausnutzen zu können,
ist es zwingend erforderlich, dass Sie die Firmware Ihres Rennlenkrads auf die neueste verfügbare Version aktualisieren
[ T128 = V5.03 / TMX = V19.00 / T248 = V2.03 / TX = V58.06 / TS-XW= V8.07 ]
(!**!) 简体中文 - 要在此游戏中充分享受力反馈体验,您必须将赛车方向盘的固件更新至可用的最新版本
[ T128 = V5.03 / TMX = V19.00 / T248 = V2.03 / TX = V58.06 / TS-XW= V8.07 ]
Many other games coming very soon / Nombreux autres titres à venir très prochainement / Viele andere Spiele folgen in Kürze
T128(Xbox One/XBox Series/PC) - Xbox Series X|S™ Games list / Liste des jeux / Liste der spiele
EN - Your racing wheel is compatible with the following Xbox Series X|S games:
Note: On Xbox Series X|S, your racing wheel also works with all Xbox One™ compatible games listed in the LIST OF XBOX ONE™ GAMES section.
FR - Votre volant est compatible dans les jeux Xbox Series X|S suivants :
Remarque : Sur Xbox Series X|S, votre volant fonctionne également avec tous les jeux Xbox One™ compatibles. Liste disponible dans la catégorie LISTE DES JEUX XBOX ONE™.
DE - Ihr Rennlenkrad ist mit den folgenden Xbox Series X|S -Spielen kompatibel:
Hinweis: Auf Xbox Series X|S funktioniert Ihr Rennlenkrad auch mit allen Xbox One™-Spielen, die kompatibel sind. Die Liste finden Sie in der Kategorie LISTE DER XBOX ONE™-SPIELE.
简体中文 – 此方向盘兼容以下 Xbox Series X|S 游戏:
- Alaskan Road Truckers: Highway Edition (*)- ASSETTO CORSA COMPETIZIONE- BUS SIMULATOR 21 Next Stop (*)- CityDriver (*)- DiRT® 5- DRIFTCE- EA SPORTS™ F1® 23- EA SPORTS™ F1® 24- EA SPORTS™ WRC
In this game, to ensure correct bindings to suit your current Wheel Rim, please navigate to the Controls menu, highlight your Wheel Base from the list of detected devices, Edit Device and Load Device Preset.
From here you can select your currently connected Rim and the tooltips will update accordingly
- Expeditions: A MudRunner Game- F1® 2021- F1® 22- FARMING SIMULATOR 22 (*)- FARMING SIMULATOR 25 (*)- Fernbus Simulator [FlixBus] (*)- FORZA HORIZON™ 4- FORZA HORIZON™ 5- FORZA MOTORSPORT (2023)- GRID™ Legends (on this game buttons & axes of the T128 must be configured manually in OPTIONS / CONTROLS / Xbox Input Wheel / Edit Device)- LAWN MOWING SIMULATOR (*)- MONSTER TRUCK CHAMPIONSHIP- NASCAR 21: Ignition
(On this game you must turn on the official gamepad controller in addition to the wheel)
- NEED FOR SPEED™ Unbound- Offroad Truck Simulator: Heavy Duty Challenge®- On The Road The Truck Simulator (*)- SNOWRUNNER- SRX: The Game- STREET OUTLAWS 2 - Winner Takes All- Taxi Life: A City Driving Simulator- THE CREW™ MOTORFEST- TEST DRIVE UNLIMITED – Solar Crown- Tourist Bus Simulator (*)- Truck and Logistics Simulator (*)- World of Outlaws: Dirt Racing- World of Outlaws: Dirt Racing 2023 Season Update- WRC 9- WRC 10- WRC GENERATIONS
(*) EN - In this game you can use the wheel and the console’s official controller at the same time (to get the most out of all available functions). No Force Feedback effects in this game, but automatic re-centering of the wheel is enabled through 900° for perfect playability and enhanced realism.
(*) FR - Dans ce jeu vous pouvez utiliser simultanément le volant avec la manette officielle de la console (pour profiter pleinement de toutes les fonctions). Pas d’effets Force Feedback dans ce jeu, mais le retour au centre automatique du volant est activé sur 900° pour une parfaite jouabilité et plus de réalisme.
(*) DE - In diesem Spiel können Sie das Lenkrad und die offiziellen Controller zur gleichen Zeit nutzen (um das Beste aus allen verfügbaren Funktionen herauszuholen). Keine Force Feedback Effekte in diesem Spiel, aber die automatische Re-Zentrierung des Lenkrads ist über 900° für eine perfekte Spielbarkeit und verbesserten Realismus aktiviert.
(*) 简体中文 – 在此游戏中,您可以同时使用本方向盘和游戏主机的官方游戏手柄(以充分利用所有可用的功能)。此游戏中没有力反馈效应,但方向盘能够自动对中,旋转角度可达 900°,带来出色的可玩性和增强的真实感。
Many other games coming very soon
Nombreux autres titres à venir très prochainement
Viele andere Spiele folgen in Kürze
T128(Xbox One/XBox Series/PC): HANDBRAKE buttons: list of compatible Xbox One / Xbox Series X|S games
EN - List of Xbox One and Xbox Series X|S games compatible with the HANDBRAKE buttons of the T128 racing wheel.
FR - Liste des jeux Xbox One et Xbox Series X|S compatibles avec les boutons FREIN A MAIN du volant T128.
DE - Liste der Xbox One- und Xbox Series X|S-Spiele, die mit den HANDBREMS Tasten des T128-Rennlenkrads kompatibel sind.
简体中文 – 与 T128 方向盘的 个手刹按钮 按钮相兼容的 Xbox One 和 Xbox Series X|S 游戏列表。
- ASSETTO CORSA – Xbox One- CarX Drift Racing Online – Xbox One- DIRT® 4 – Xbox One- DiRT® 5 – Xbox One & Xbox Series X|S- DIRT® RALLY – Xbox One- DiRT RALLY 2.0™ - Xbox One- DIRT® SHOWDOWN – Xbox 360 Backward compatibility- EA SPORTS™ F1® 23 – Xbox One- EA SPORTS™ F1® 23 – Xbox Series X|S™- EA SPORTS™ F1® 24 – Xbox One™- EA SPORTS™ F1® 24 – Series X|S™- EA SPORTS™ WRC - Xbox Series X|S- FORZA HORIZON™ – Xbox 360 backward compatibility- FORZA HORIZON® 4 – Xbox One & Xbox Series X|S- FORZA HORIZON™ 5 – Xbox One & Xbox Series X|S- FORZA MOTORSPORT ® 7 – – Xbox One- FORZA MOTORSPORT (2023) – Xbox Series X|S™- GRAVEL – – Xbox One- GRID™ - – Xbox One- GRID™ 2 – Xbox 360 Backward compatibility- GRID™ AUTOSPORT – XBOX 360 Backward compatibility- GRID™ LEGENDS – Xbox One & Xbox Series X|S- PROJECT CARS – Xbox One- PROJECT CARS 2 – Xbox One- PROJECT CARS 3 – Xbox One- STREET OUTLAWS 2 - Winner Takes All – Xbox One & Xbox Series X|S- THE CREW 2 – Xbox One- THE CREW™ MOTORFEST – Xbox One™- THE CREW™ MOTORFEST - Xbox Series X|S™- TEST DRIVE UNLIMITED – Solar Crown – Xbox Series X|S™- V-RALLY 4 – Xbox One- WRC 5 – Xbox One- WRC 6 – Xbox One- WRC 7 – Xbox One- WRC 8 – Xbox One- WRC 9 – Xbox One & Xbox Series X|S- WRC 10 – Xbox One & Xbox Series X|S- WRC GENERATIONS – Xbox One™- WRC GENERATIONS – Xbox Series X|S™- WRECKFEST – Xbox One- Many other games coming very soon
T128(Xbox One/XBox Series/PC): LIST OF GAMES COMPATIBLE WITH THE 4 RPM LEDs
T128 - List of games compatible with the 4 RPM LEDs
- American Truck Simulator – PC- ASSETTO CORSA COMPETIZIONE – PC- ASSETTO CORSA COMPETIZIONE – Xbox Series X|S™- AUTOMOBILISTA 2 – PC- DiRT®5 – PC- EA SPORTS™ F1® 23 – PC- EA SPORTS™ F1® 23 – Xbox One- EA SPORTS™ F1® 23 – Xbox Series X|S™- EA SPORTS™ F1® 24 – PC- EA SPORTS™ F1® 24 – Xbox One™- EA SPORTS™ F1® 24 – Series X|S™- Euro Truck Simulator 2 – PC- F1 2020 – PC- F1 2021 – PC- F1® 22 – PC- F1® 22 – Xbox One™- F1® 22 – Xbox Series X|S™- FORZA HORIZON 5 – PC- FORZA HORIZON 5 – Xbox One™- FORZA HORIZON 5 – Xbox Series X|S™- FORZA MOTORSPORT (2023) – PC- FORZA MOTORSPORT (2023) – Xbox Series X|S™- iRacing® – PC- LE MANS® ULTIMATE – PC
[in LE MANS® ULTIMATE, in OPTIONS of the game, “USE LEDs” but also “USE HARDWARE DISPLAY” (available in CONTROLS / WHEEL & PEDALS / CALIBRATE) must be activated for the functionality of the TELEMETRY (Screen or LEDs)].
- NASCAR 21: Ignition – PC- RaceRoom Racing Experience – PC- Test Drive Unlimited Solar Crown – PC (Steam Demo)- THE CREW™ MOTORFEST – PC- THE CREW™ MOTORFEST – Xbox One™- THE CREW™ MOTORFEST – Xbox Series X|S™- TEST DRIVE UNLIMITED – Solar Crown – PC- TEST DRIVE UNLIMITED – Solar Crown – Xbox Series X|S™- WRC 10 – PC- WRC GENERATIONS – PC- WRC GENERATIONS – Xbox One™- WRC GENERATIONS – Xbox Series X|S™- Many other games coming very soon
WHEELS - Compatibility with CLOUD GAMING and STREAMING
EN
Compatibility with CLOUD GAMING and STREAMING
FR
Compatibilité avec le CLOUD GAMING et le STREAMING
DE
Kompatibilität mit CLOUD GAMING und STREAMING
EN
"IMPORTANT:
Racing wheels are not compatible with games in CLOUD GAMING or STREAMING mode (in particular those in GAME PASS, Xbox Remote Play, PlayStation®Plus, GeForce NOW, Luna,…). In CLOUD GAMING or STREAMING mode, only standard gamepads are compatible.
To be able to play these games with a racing wheel, it is therefore imperative that you first download the entire game onto the hard drive/SSD of your console or PC before launching it."
FR
"IMPORTANT :
Les volants ne sont pas compatibles avec les jeux en mode CLOUD GAMING ou STREAMING (notamment ceux du GAME PASS, Xbox Remote Play, PlayStation®Plus, GeForce NOW, Luna, …). En mode CLOUD GAMING ou STREAMING, seules les manettes de jeu standard sont compatibles.
Pour pouvoir jouer avec un volant à ces jeux, il est donc impératif de télécharger au préalable entièrement le jeu sur le disque dur/SSD de sa console ou de son PC avant de le lancer."
DE
"ACHTUNG:
Rennlenkräder sind nicht mit Spielen im CLOUD GAMING- oder STREAMING-Modus kompatibel (insbesondere nicht mit GAME PASS, Xbox Remote Play, PlayStation®Plus, GeForce NOW, Luna, …). Im CLOUD GAMING- oder STREAMING-Modus sind nur Standard-Gamepads kompatibel.
Um diese Spiele mit einem Rennlenkrad spielen zu können, ist es daher zwingend erforderlich, dass Sie das gesamte Spiel vor dem Start auf die Festplatte/SSD Ihrer Konsole oder Ihres PCs herunterladen."
Mapping – LE MANS® ULTIMATE (PC) – T128-X
PC
SimTask Steering Kit & T128 Suggested Mapping – American Truck Simulator (PC)
PC
SimTask Steering Kit & T128 Suggested Mapping – Bus Simulator 21 (PC)
PC
SimTask Steering Kit & T128 Suggested Mapping – Construction Simulator (PC)
PC
Knowledge base
- My racing wheel doesn’t work well with a console game, and I don’t have a PC to test it with. How do I test my racing wheel on my Xbox One™, Xbox Series S™ or Xbox Series X™ console?
- When I play, my racing wheel’s Force Feedback weakens, disappears or cuts off. My racing wheel can also heat up, or power off by itself. What can I do?
- My racing wheel seems defective when I play or doesn’t work with a game on Xbox One™, Xbox Series S™ or Xbox Series X™.
- Help Center – Pedal sets
- Check the firmware of my racing wheel base
- Testing calibration and force feedback of my Thrustmaster racing wheel
- Racing wheels: ecosystem and compatibility
FAQ
- Checking and, if necessary, reconfiguring the racing wheel’s center value – T128 (Xbox One/XBox Series/PC)
- Procedure to wake up your T128 (Xbox One/Xbox Series/PC) racing wheel if it will not power on at all and is not recognized or detected by your PC, Xbox One™, Xbox Series X™, Xbox Series S™ (in the event of a loss of firmware).
- Remarks on the use of racing wheels and joysticks with the QUICK RESUME mode of the Xbox Series X™ and Xbox Series S™ consoles
Licenses
“Xbox”, “Xbox One” and “Xbox Series X|S” are a registered trademarks of Microsoft Corporation.
