T98 mapping in F1® (PC version)

KB 1863 - ZH - 2025-10-08
Products: T98 Ferrari 296 GTB (PS4/PS5/PC) ; T98 Ferrari 296 GTS (Xbox One/XBox Series/PC)



System required: PC natively running Windows® 10/11 or more recent


This article shows how to record your T98 axes and buttons in the F1® 23 (PC version).and F1® 24 (PC version) games.
This mapping method also serves as an example for the series of F1® (Formula 1) games, from F1® 2015 to F1® 24, in their PC versions.

For F1® 25: the T98 is natively compatible with the F1® 25 (PC version) game. The T98's buttons and axes are active for gameplay, and you will find the steering wheel in the game's controllers under the name T80.


Important:
- Make sure that the LED on the steering wheel lights up green . And the T98 needs no drivers to work on PC.

This article contains:
1- Steps to map the T98 in F1® 23 (PC version) and F1® 24 (PC version)
2- Mapping recommended depending on the version of your T98
     - F1® (PC version) Mapping T98 Ferrari 296 GTB (PS4/PS5/PC)
     - F1® (PC version) Mapping T98 Ferrari 296 GTS (Xbox One/XBox Series/PC)

1- Steps to map the T98 in F1® 23 (PC version) and F1® 24 (PC version)

Connect your T98 to the PC and then launch the game. You must use the keyboard to navigate in the game.

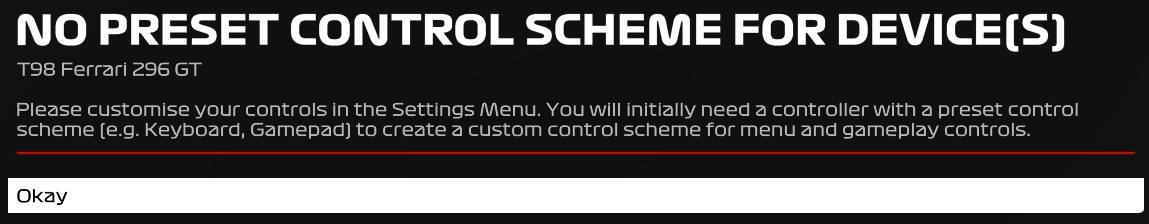

When using your T98 in F1® 23 or F1® 24 for the first time, once past the home page, you get a message that T98 is detected but needs to be mapped.



- Click Okay

You go directly to SETTINGS

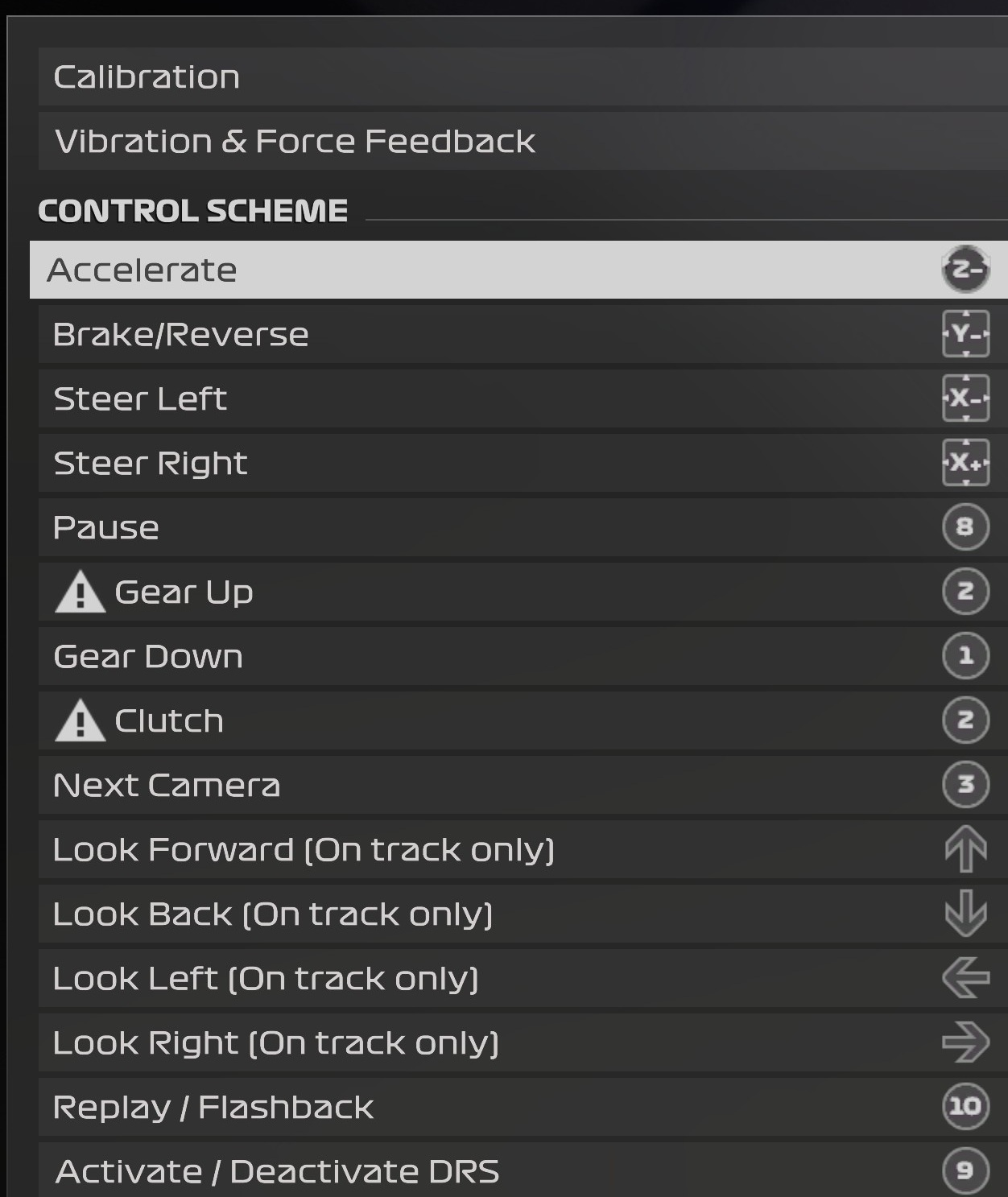

In CONTROL SCHEME:

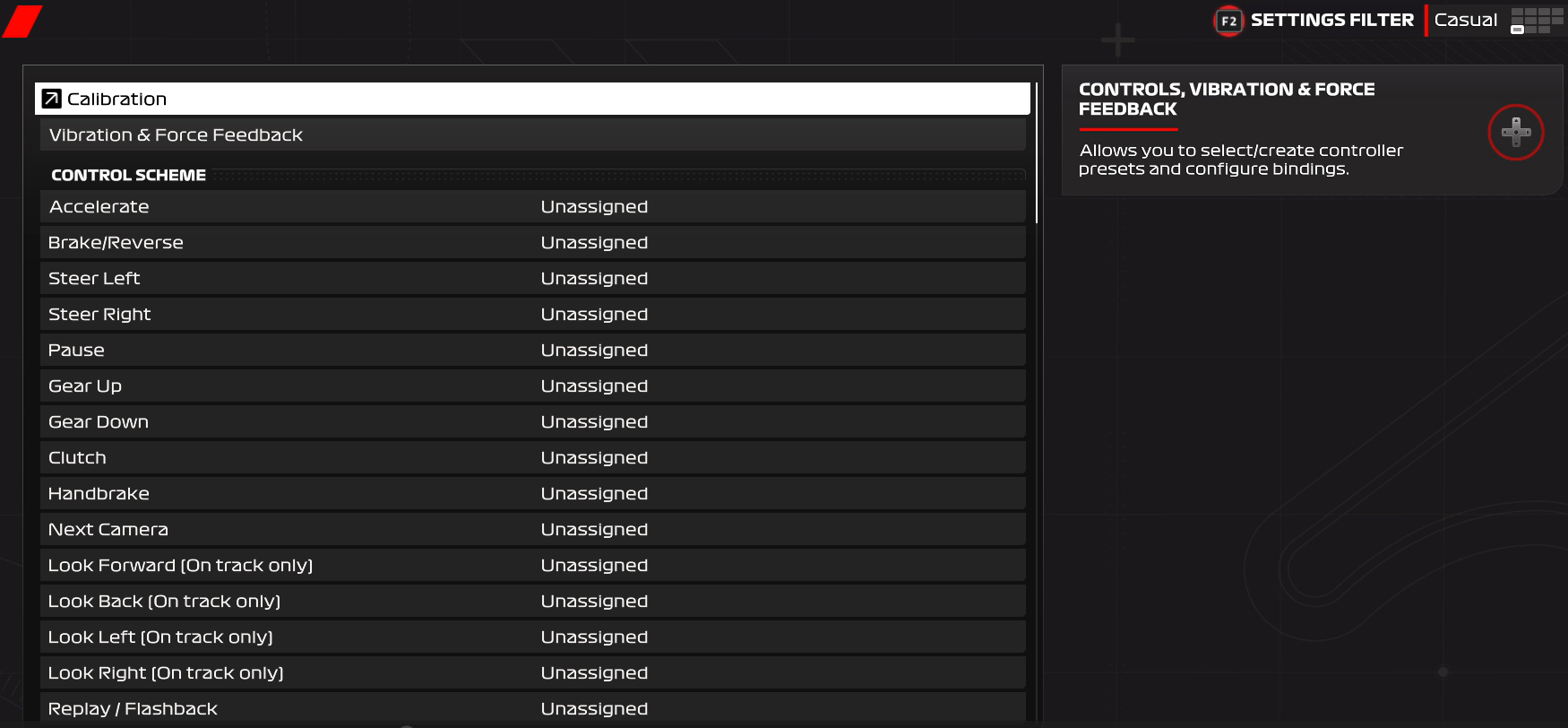

- All buttons and axes are marked as Unassigned.



- Select the line of an axis or button:

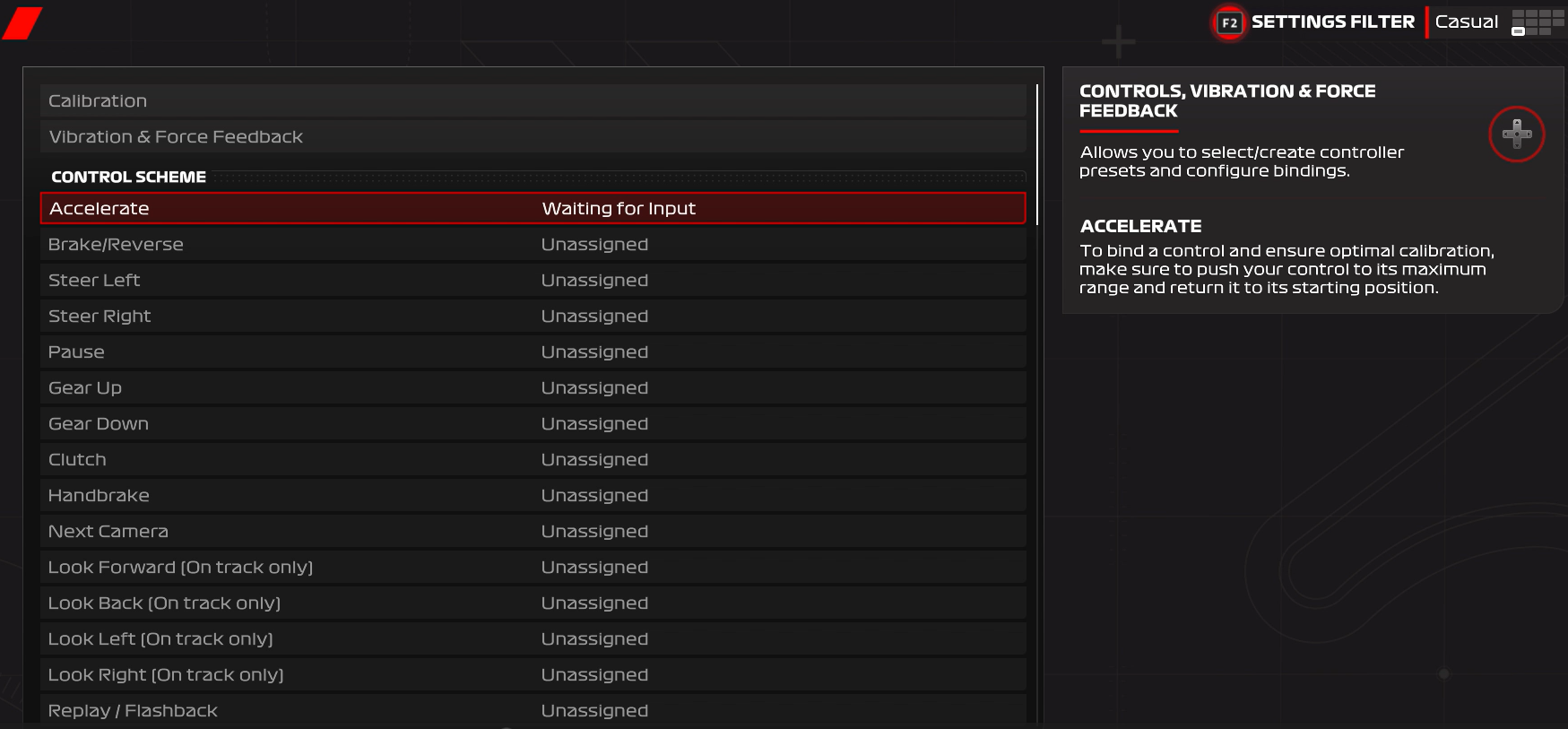

- Press ENTER: a waiting message appears

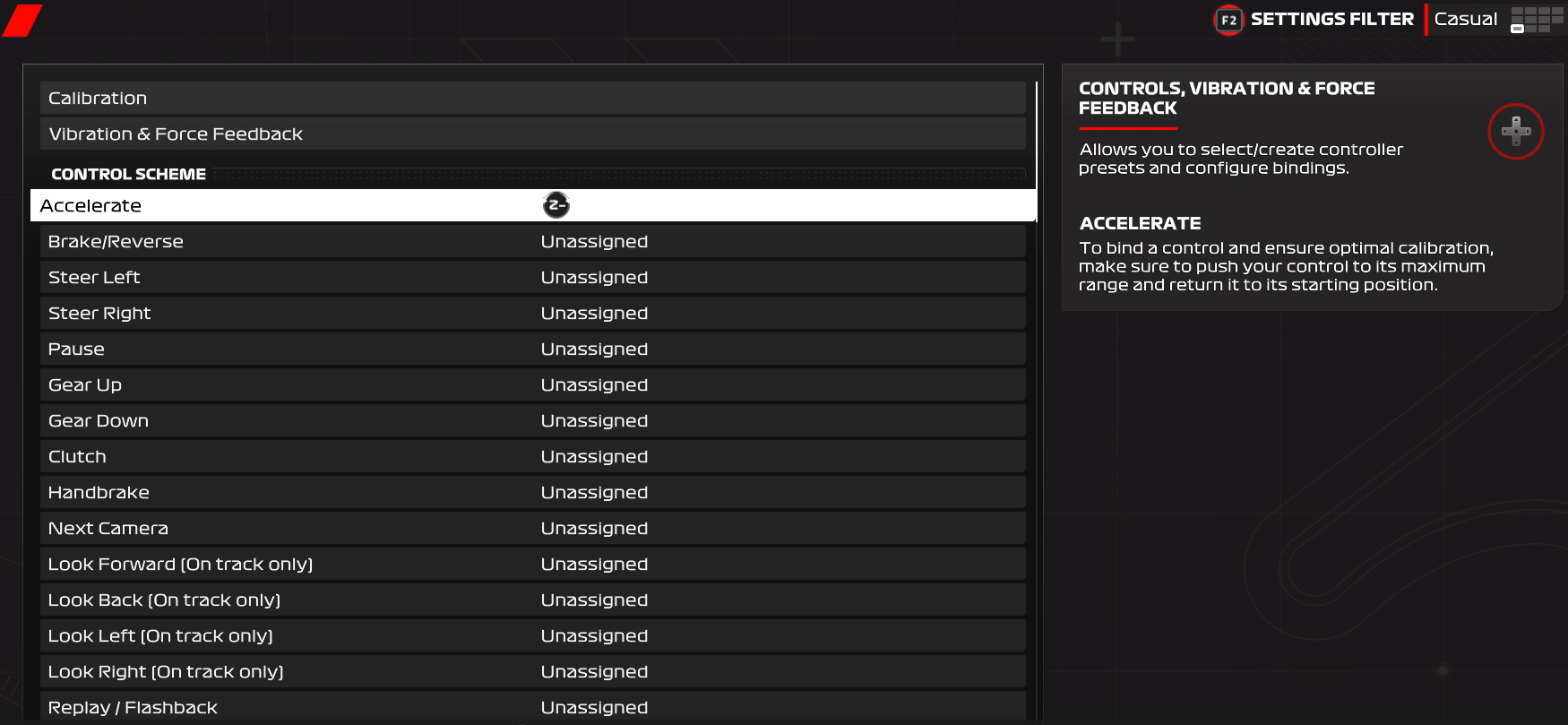

- Physically activate the corresponding T98 axis or button: a symbol appears to confirm the mapping



Following this procedure, you must assign all buttons and axes:
- Accelerate = press the accelerator pedal
- Brake/Reverse = press the brake pedal
- Steer left = turn the steering wheel to the left stop
- Steer right = turn the steering wheel to the right stop
- etc.



To assist you, in the following section, you can view the recommended mappings based on your T98 version.
- F1® (PC version) Mapping T98 Ferrari 296 GTB (PS4/PS5/PC)
- F1® (PC version) Mapping T98 Ferrari 296 GTS (Xbox One/XBox Series/PC)

Note on rotation angle:
The F1® 24 game offers a default rotation angle of 400°. However, for the T98, we strongly recommend setting the rotation angle to 240°.

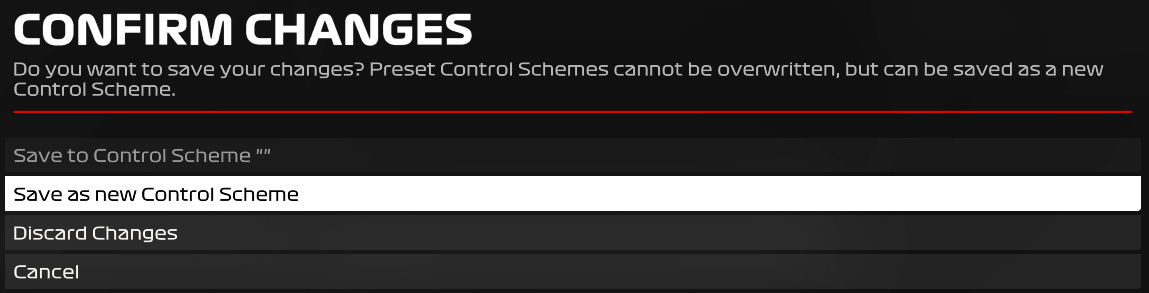

Once mapping is complete, press ESC (Escape) on your keyboard to save. A confirmation menu will open:



- Save as a new file, press ENTER

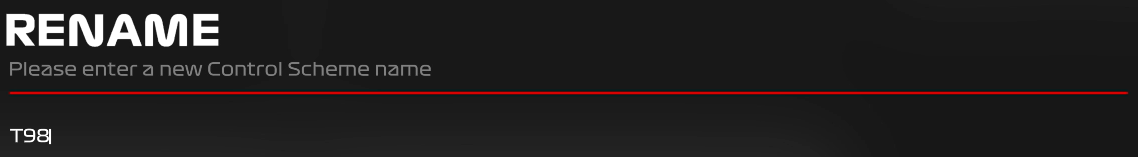

- Give your mapping file a name. Example: T98



- Press ENTER to confirm

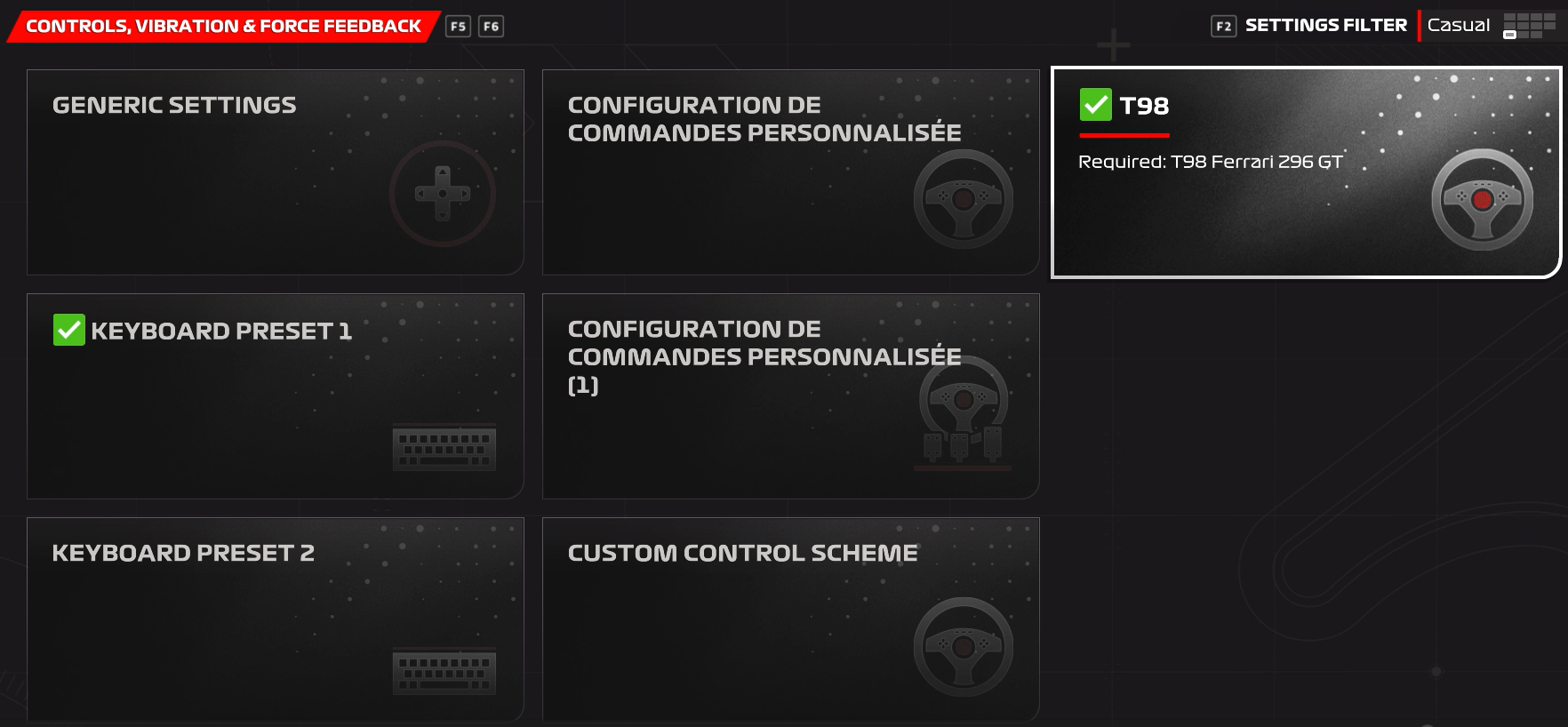

If necessary, you can find your file in OPTIONS / SETTINGS / CONTROLS



2- Mapping recommended depending on the version of your T98

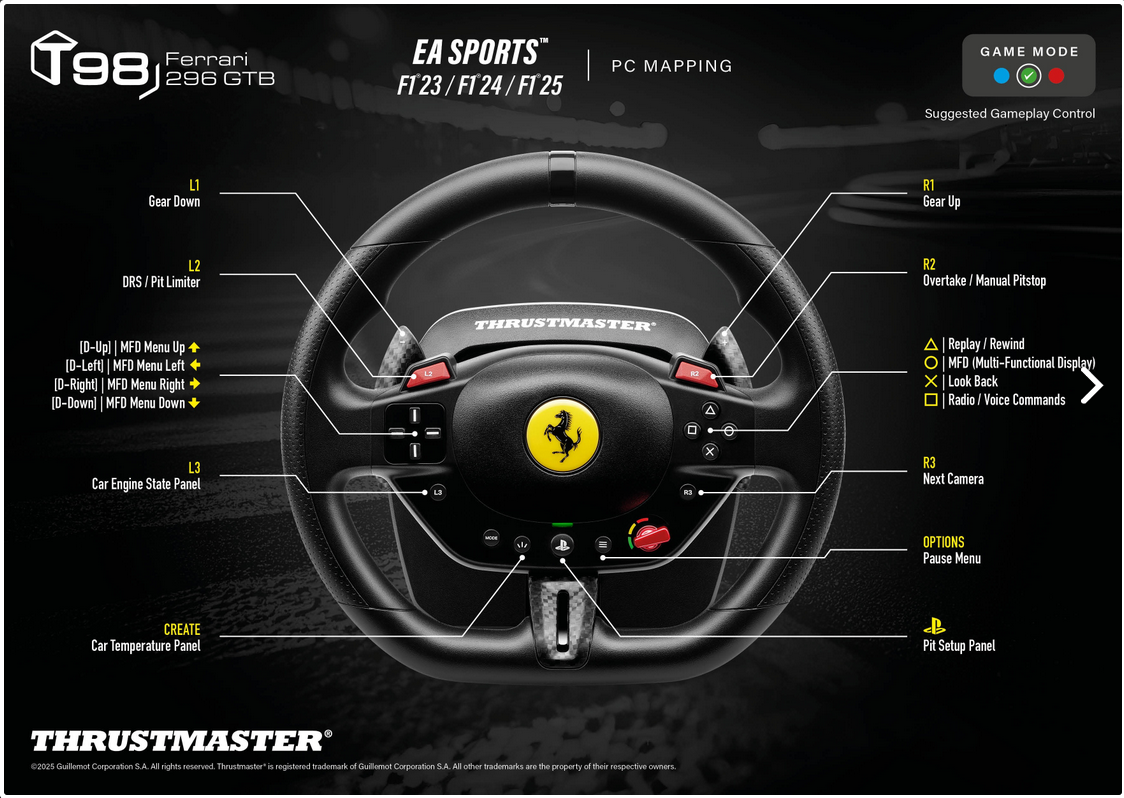

F1® (PC version) Mapping T98 Ferrari 296 GTB (PS4/PS5/PC)

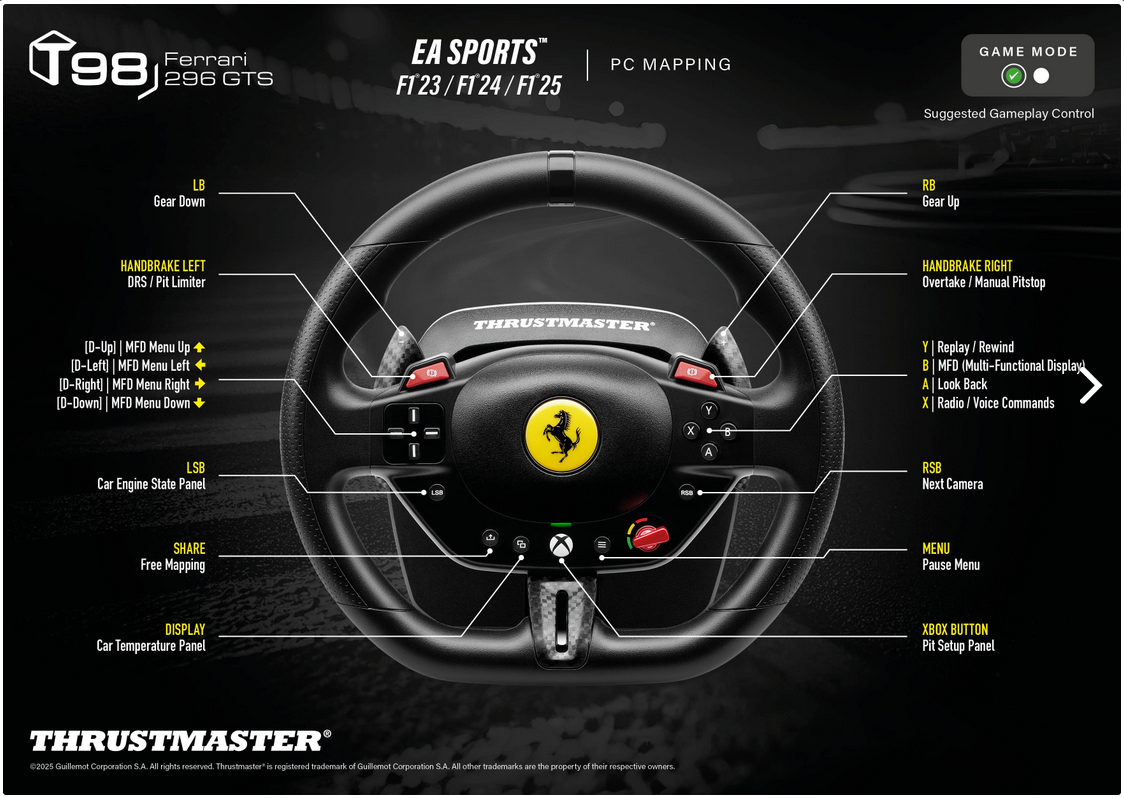

F1® (PC version) Mapping T98 Ferrari 296 GTS (Xbox One/XBox Series/PC)

Enjoy the race!
