System Requirement: Windows 10 / 11
This driver package is compatible with these racing wheels:
- T818- T-GT (on PC, the USB sliding switch on the T-GT racing wheel base must always be set to the OTHER position!)- TS-XW RACER- TS-PC RACER- TX- TMX- T500- T300 (on PC, the USB sliding switch on the T300 racing wheel base must always be set to the PC-PS3 position!)- T248-PS- T248-X- T128-PS- T128-X- T150 (on PC, the USB sliding switch on the T150 racing wheel base must always be set to the PS3 position!)- BT LED DISPLAY- TM Sim Hub
Changes made in new driver version [2024_TTRS_1]:
- Fixed conflicts (and some Force Feedback issues on PC) with the latest Windows OS Build [v22631.3085 - Update KB5034204] and the latest modification of the Microsoft GameInput service.
**WHEEL'S FIRMWARE VERSION**
== Your wheel's Firmware version appears in the top right in the Control Panel's tabs:
- T818 Racing Wheel: V6.01 (for the base) and V2.12 (for the quick release adapter)- T-GT Racing Wheel: V10 (for the base) and V32 (for the rim)- T300 RS Racing Wheel: V34- T248-PS Racing Wheel: V2- T248-X Racing Wheel: V2.04- T128-PS Racing Wheel: V4.76- T128-X Racing Wheel: V5.04- T150 Racing Wheel: V35- TS-XW Racer (USB): V8.07- TX Racing Wheel: V58.06- TMX Racing Wheel: V20- TS-PC Racer: V13- T500 RS Racing Wheel: V47- TM Sim Hub: V1.12 (Main) - V1.09 (CoMCU)- BT LED Display: V1.17 (Main) - 1.18 (Bluetooth)- Formula Wheel Add-On Ferrari SF1000 Edition: V6.27
**IMPORTANT**:
- IF A DRIVER PACKAGE FOR YOUR PRODUCT IS ALREADY INSTALLED ON THE COMPUTER, RUNNING THE PACKAGE INSTALLATION ONCE WILL ACTUALLY UNINSTALL THE PREVIOUS VERSION.
IT WILL THEN BE NECESSARY TO RUN IT AGAIN TO PROCEED TO THE INSTALLATION OF THE NEW VERSION
- DO NOT CONNECT the racing wheel to your PC before being prompted to do so.- DO NOT CLICK in any Windows-specific panes that may appear during the update process.- RESTART THE COMPUTER once the package setup is complete.
**INSTALLATION**:
1- Double-click the installation file (2024_TTRS_1.exe) to proceed with the installation.
2- Follow the instructions displayed onscreen.
3- When done:
* Select Start/All Apps/Thrustmaster/FFB Racing Wheel/Control Panel. (Windows 10/11)
* Or, your keyboard, click simultaneously on the Windows + R keys. The Run window opens, type "joy.cpl", then click OK
The racing wheel appears onscreen with the status indication OK
4- In the Control Panel, click Properties to configure your racing wheel:
* Test Input: Enables you to test the buttons, the D-Pad, the Wheel, the Pedals and to configure wheel Rotation Angle.
* Test Forces: Enables you to test 12 force effects.
* Gain Settings: Enables you to configure the Force Feedback.
Click on OK to save your settings and exit the Control Panel.
You are now ready to race!
**GENERAL NOTES**

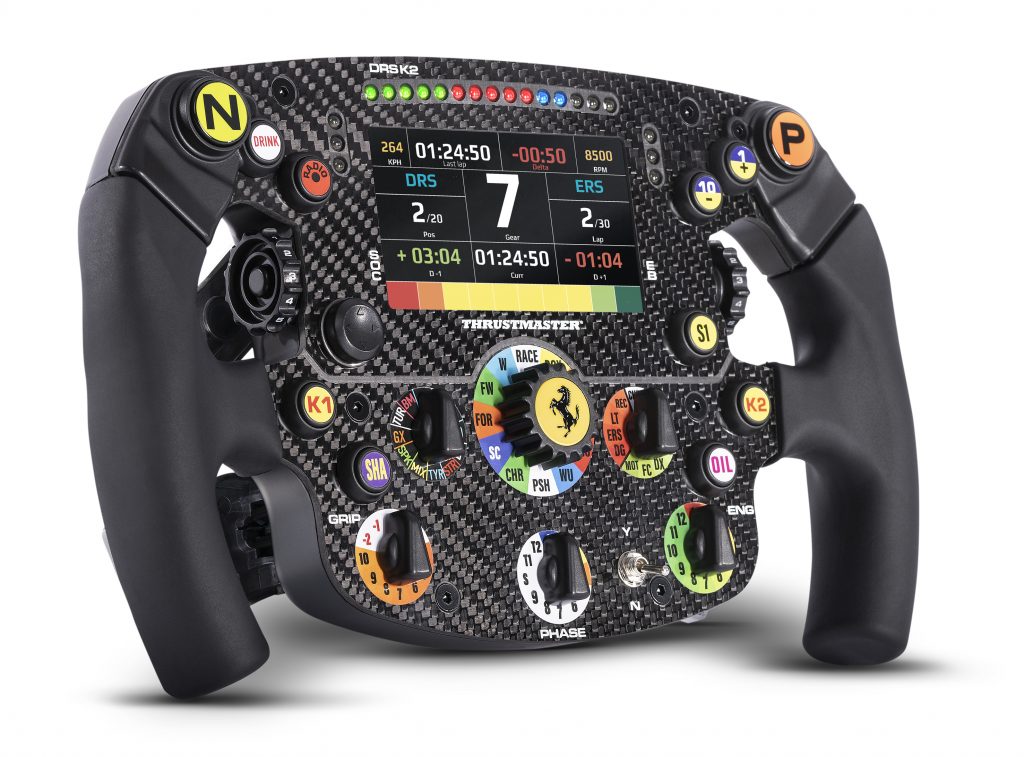

# About the Formula Wheel Add-On Ferrari SF1000 Edition, the Ferrari 488 GT3 Wheel Add-On and the other future wheels:
== These wheels are now shown as a GENERIC ROUND WHEEL in the CONTROL PANEL. This change is only visual in the Control Panel and no incidence in games.
This change is visible using the TX / T300 / TS-PC / TS-XW / T-GT / T-GT II bases on PC.
# About F1 22 - PC:
== It is recommended to disconnect your other USB gaming devices (such as USB shifter, USB handbrake, USB gamepad, etc.) in order to avoid any conflicts with USB wheels and/or USB pedal sets.
== If you are using the old Ferrari F1 Wheel Add-On simultaneously with a T-LCM Pedals set connected via USB, you must select NORMAL Mode (and not ADVANCED MODE) in the Thrustmaster Control Panel.
You can select ADVANCED MODE only if the T-LCM Pedals set is connected directly to the Thrustmaster wheel base with the RJ12 cable.
# About the old FERRARI F1 racing wheel:
== On PC, the Ferrari F1 racing wheel is recognized and appears onscreen under the name Thrustmaster T-GT Racing Wheel or TS-XW RACER (USB)
or TS-PC RACER or Thrustmaster T500 RS Racing Wheel, Thrustmaster TX Racing wheel, or Thrustmaster T300 RS Racing Wheel.
This is the "Normal Mode", offering 13 action buttons + D-Pad (in this mode, the D-Pads, shifters and L3/R3 buttons are combined).
In this mode, the 2 rotary encoders emulate the D-Pad's 4 main directions. They can therefore be used to alter a car's settings (engines, tires, fairing, etc.).
To use them, if required, access your game's Control options and alter them as required.
== On PC (only), the racing wheel can be configured in "Advanced Mode" to offer 25 action buttons + 1 D-Pad
(in this mode, the 2 rotary encoders, 2 D-Pads, 4 shifters and 4 L3/R3 buttons are configured individually). To do so, in the Control Panel, select the Advanced Mode option.
The racing wheel appears onscreen under the name Ferrari F1 Wheel Advanced T-GT or Ferrari F1 Wheel Advanced TS-XW Racer
or Ferrari F1 Wheel Advanced TS-PC Racer or Ferrari F1 wheel Integral T500 or Ferrari F1 wheel Advanced TX or Ferrari F1 wheel Advanced T300.
# General comments:
- For most games: in the OPTIONS/CONTROLS/FORCE FEEDBACK settings, Force Feedback effects must be set to "POSITIVE = + Values" or "NON-REVERSED".
**CHANGES MADE IN PREVIOUS DRIVER VERSIONS**:
[Package 2023_TTRS_4]:
- Change in control panel:
* To improve compatibility of CPL with steering wheel, the Formula Wheel Add-On Ferrari SF1000 Edition + the Ferrari 488 GT3 Wheel Add-On + the other future wheels are now shown as a GENERIC ROUND WHEEL in the CONTROL PANEL.
This change is only visual in the Control Panel and no incidence in games. This change is visible using the TX / T300 / TS-PC / TS-XW / T-GT / T-GT II bases on PC.
* Fixed few issues in the THRUSTMASTER CONTROL PANEL
- T818 firmware update:
* T818 base - new Firmware V6.01:
== Now, the front LED of the T818 react based on the TELEMETRY DATA provided by games (limited to FLAG + RPM + PIT).
Process to activate this telemetry and list of compatible games available on https://support.thrustmaster.com/product/t818-en/ in GAMES SETTINGS
IMPORTANT ABOUT THE TELEMETRY DATA ON THE T818 BASE:
# In order to take advantage of the tellemetry functions, it is imperative that you install an offical Thrustmaster wheel on the T818 base and that you update your base’s firmware with the latest firmware version.
# For now the process to select the telemetry pattern and to adjust the LED brightness is working with all Thrustmaster wheels except with the TM OPEN WHEEL
# On iRacing, in OPTIONS of the game, CONTROL LCD WHEEL DISPLAYS must be activated for the functionality of the Telemetry.
== Add Ferrari 488 GT3 Wheel Add-On’s compatibility with T818
== Firmware improvement and bug fixes
- Add Ferrari 488 GT3 Wheel Add-On’s support:
!Important! It is mandatory to install the latest Firmware on your Thrustmaster Base:
[V58.06 for TX] - [V34 for T300] - [V8.07 for TS-XW] - [V10 for T-GT] - [V13 for TS-PC] - [V6.01 for T818]
- Formula Wheel Add-On Ferrari SF1000 Edition firmware update:
* Formula Wheel Add-On Ferrari SF1000 Edition - new Firmware V6.27:
== Fixed possible freeze issues (detected previously on PC / PS4™ / PS5™)
== Added with EA SPORTS™ F1® 23, in NATIVE mode (PC / PS4 / PS5), four screens corresponding to the game (General / Tire 1 / Tire 2 / Engine)
== Added with EA SPORTS™ F1® 23, in UDP via Wi-Fi mode (Xbox), one screen corresponding to the game (General)
== Added UDP support via Wi-Fi with EA SPORTS™ F1® 23 – Xbox version:
# in the options of this game, in SETTINGS / TELEMETRY SETTINGS / UDP Send Rate: select 120 Hz and in UDP Format: select 2023
# in older versions (F1® 22 – Xbox / F1 2021 - Xbox / F1 2020 – Xbox) in UDP Format: select 2020
== UDP GAMES tab was removed from the wheel’s screen menu (UDP 20777 for F1 games is now automatically selected)
!Important! It is mandatory to install the latest Firmware on your Thrustmaster Base:
[V58.06 for TX] - [V34 for T300] - [V8.07 for TS-XW] - [V10 for T-GT] - [V13 for TS-PC] - [V6.01 for T818]
- Thrustmaster Xbox Force Feedback wheels firmware update:
* TMX - new Firmware V20
* T128-X - new Firmware V5.4
* T248-X - new Firmware V2.04
== Force Feedback improvement
[Package 2023_TTRS_3]:
- Improvements, on PC (for all Thrustmaster PC Wheels) of the self-calibration phase- Added new firmware for all Thrustmaster Xbox Force Feedback wheels:
* TMX - new Firmware V19
* T128-X - new Firmware V5.03
* T248-X - new Firmware V2.03
* TX - new Firmware V58.06
* TS-XW - new Firmware V8.07
== Fixed a force feedback major issue in upcoming Xbox games = it is highly recommended to update your steering wheel base with this new firmware version!
- Added new firmware for the T128-PS Racing Wheel:
* T128-PS - new Firmware V4.76:
== The PlayStation GAME MODE is now set by default on PLAYSTATION STANDARD COMPATIBILITY setting = BLUE Led
- Added new firmware for the T818 base:
* T818 base - new Firmware V5.72:
== Improvement: New self-calibration phase (when the base is turned on) + auto-spring effect removal
== New feature: T818 Control Panel Slider in Settings [ADJUSTMENT OF THE FORCE FEEDBACK LINEARITY]
++ LINEARITY = 0% : Is fully linear, it is the same setting as in the previous firmware V5.20
++ LINEARITY > 0% : This reduces the dynamic range of the small forces, a lower setting will be close to linearity, a higher setting will lower small force leading to a quieter steering in straight line (as example : it could reduce fatigue during long distance single seater race)
== For safety, the Force Feedback is now stopped if a T818 Quick Release Adapter or a T818 Native Connector is not attached to the base
== Other improvements
- Added new firmware for the T818 Quick Release Adapter (CAN):
* T818 CAN - new Firmware V2.12:
== Allow to update the SF1000 rim even if a T818 QUICK RELEASE ADAPTER is attached (when the SF1000 rim is directly connected to the PC with the USB to USB-C cable)
[Package 2023_TTRS_2]:
- Fixed conflicts (and some Force Feedback issues on PC) with the latest modification of the Microsoft GameInput service.
[Package 2023_TTRS_1]:
- Added new firmware for the T818 base:
* T818 base - new Firmware V5.20:
- Fixed a force feedback issue found in previous version V5.18 (the DAMPER slider available in the options of games such as ASSETTO CORSA COMPETIZIONE, F1, and other games, was not functional and generated exaggerated and/or unwanted wobbles on the wheel / SPRING effects were not functional). It’s now solved. After installing the new firmware it may be necessary to adjust the DAMPER slider in the options of these games.- Fixed the bootloader issue in previous version V5.14. It is now possible to update the firmware.- Fixed an issue in the Thrustmaster Firmware Updater software for TMX Racing Wheel and T150 Racing Wheel.
[Package 2022_TTRS_2]
- Added support for the T818 Racing Wheel- Fixed an issue (for all Thrustmaster Racing Wheels) with some PC Games (WRC GENERATIONS 10 and some others)
[Package 2022_TTRS_1]
- Added support for the T128 Racing Wheels- Fixed some compatibility issues with F1 22 - PC
* When used with a T-LCM Pedals set connected via USB simultaneously with a Thrustmaster wheel base.
* When used with a T-LCM Pedals set connected via USB simultaneously with a base from another brand (such as Logitech, Fanatec, etc.).
* When used with a Thrustmaster wheel base (even if it is not a Force Feedback wheel, T80 racing wheel, Ferrari Racing Wheel Red Legend Edition, e.g.).
[Package 2021_TTRS_4]:
- Added T-BOOST function on PC (for all Thrustmaster Racing Wheels)
* The T-BOOST function improves on PC your performance by offering a more accurate feeling of the road
- Fixed a force feedback issue (for all Thrustmaster Racing Wheels) with F1 2021 - PC- Added new firmware for the T248-PS Racing Wheel:
* T248-PS - new Firmware V2: added a new features with the MODE BUTTON (FORCE function)
* The FORCE function for the T248 screen allows you to adjust in real time (= directly in race) all the racing wheel's force effects from 20% to 100%.
- Added support for the T248-X Racing Wheel- Added new firmware for the T248-X Racing Wheel:
* T248-X - new Firmware V2: fixed an issue with the MODE BUTTON and the FORCE function.
- Added new firmware for the TMX Racing Wheel:
* TMX - new Firmware V17: fixed a force feedback issue with F1 2021 - XBOX
- Added new firmware for the T300 Racing Wheel:
* T300 - new Firmware V34: Led color change + New method for inverting your pedals + Switching between PS5 mode & PS4 mode
* LED Colour Change: on PC, the LED color is now GREEN instead of red / When the pedals are successfully inversed, the LED flashes once every 8 seconds
* New method for inverting your pedals: Hold MODE + L3 + R3 for 5 seconds for pedals inversion
* Switching between PS5 mode and PS4 mode: Press and hold the MODE button for 5 seconds to update PS4 mode (ORANGE LED) to PS5 mode (RED LED).
[Package 2021_TTRS_3]
- Fixed an issue (for all Thrustmaster Racing Wheels) with some PC Games (WRC 10 - Euro Truck Simulator 2 - American Truck Simulator - and some others)- Fixed an issue in Thrustmaster Firmware Updater software- Added support for the T248-PS Racing Wheel- Added new firmware for the T248-PS Racing Wheel:
* T248-PS - new Firmware V1.84:
- Added some features with the MODE BUTTON (AUTO in ROT°)- Fixed an issue with the DISPLAY BUTTON- Fixed an issue with the RESET feature- Fixed an issue with the 2 magnetic paddle shifters (Up and Down)- Fixed an issue with the T3PM pedal set (when connected to the T248 base)- Fixed an issue with the T-LCM pedal set (when connected to the T248 base)
[Package 2021_TTRS_2]
- Added new firmware for many Thrustmaster Force Feedback wheels.
* T-GT: new Firmware V10 (for the base)
- Formula Wheel Add-On Ferrari SF1000 Edition screen protocol open for new NATIVE upcoming games !Important! Also requires to install new Firmware V5.51 on the Formula Wheel Add-On Ferrari SF1000 Edition
* T300: new Firmware V33
- Formula Wheel Add-On Ferrari SF1000 Edition screen protocol open for new NATIVE upcoming games !Important! Also requires to install new Firmware V5.51 on the Formula Wheel Add-On Ferrari SF1000 Edition
* TS-XW: new Firmware V8
- Formula Wheel Add-On Ferrari SF1000 Edition screen protocol open for new NATIVE upcoming games !Important! Also requires to install new Firmware V5.51 on the Formula Wheel Add-On Ferrari SF1000 Edition
* TX: new Firmware V58
- Formula Wheel Add-On Ferrari SF1000 Edition screen protocol open for new NATIVE upcoming games !Important! Also requires to install new Firmware V5.51 on the Formula Wheel Add-On Ferrari SF1000 Edition- Fixed an issue with the automatic return to the center of the steering wheel in the Xbox Series X|S consoles menu
* TS-PC: new Firmware V13
- Formula Wheel Add-On Ferrari SF1000 Edition screen protocol open for new NATIVE upcoming games !Important! Also requires to install new Firmware V5.51 on the Formula Wheel Add-On Ferrari SF1000 Edition
* Formula Wheel Add-On Ferrari SF1000 Edition: new Firmware V5.51
- Improved display of some information in F1 2020 and F1 2021 in NATIVE mode (PC / PS4 / PS5)- Screen protocol open for new NATIVE upcoming games
!Important! Also requires to install new Firmware on Thrustmaster Bases: [V33 for T300] - [V10 for T-GT] - [V13 for TS-PC] - [V58 for TX] - [V8 for TS-XW]
[2021_TTRS_1]
- Added new firmware for many Thrustmaster Force Feedback wheels.
* T-GT: new Firmware V9 (for the base)
- Added support for the Formula Wheel Add-On Ferrari SF1000 Edition
* T300: new Firmware V32
- Added support for the Formula Wheel Add-On Ferrari SF1000 Edition- Fixed a compatibility issue on PlayStation 3
* T150: new Firmware V35
- Improved compatibility with the TH8A Shifter (when the shifter is connected to the wheel's DIN connector).
!Important! Also requires to install new Firmware V29 on the TH8 Shifter
- Fixed a compatibility issue on PlayStation 3
* TS-XW: new Firmware V7
- Added support for the Formula Wheel Add-On Ferrari SF1000 Edition- Improved Force Feedback in some PC games- Improved Force Feedback in some Xbox Series X|Series games
* TX: new Firmware V57
- Added support for the Formula Wheel Add-On Ferrari SF1000 Edition- Improved Force Feedback in some PC games- Improved Force Feedback in some Xbox Series X|Series games
* TS-PC: new Firmware V12
- Added support for the Formula Wheel Add-On Ferrari SF1000 Edition
[2020_TTRS_2]
- Added new firmware for many Thrustmaster Force Feedback wheels:
* T-GT: Firmware V7
* T300: Firmware V31
* T150: Firmware V21
* TS-XW: Firmware V6
* TX: Firmware V56
* TMX: Firmware V15
* TS-PC: Firmware V11
!Warning!: with these new firmware, the racing wheel's bases now handles (and detects) differently the type of pedal set connected (via RJ12) to the base.
Check out the important note and information here: http://ts.thrustmaster.com/download/accessories/Manuals/T_LCM/T-LCM_RJ12-pedal_set_mode_detection.pdf
[2020_TTRS_1]
- Added new firmware for many Thrustmaster Force Feedback wheels (and support for the T-LCM Pedals when connected to the RJ12 port of these bases):
* T-GT: Firmware V6 (for the base)
* T300: Firmware V30
* T150: Firmware V11
* TS-XW: Firmware V5
* TX: Firmware V55
* TMX: Firmware V11
* TS-PC: Firmware V10
- Added new firmware for the TM Sim Hub (solved some disconnect issues with the TSS Handbrake and with the TH8A Shifter):
* TM Sim Hub: V1.12 (Main) - V1.09 (CoMCU)
[2019_TTRS_1]
- Fixed an issue with DiRT RALLY 2.0 - PC
[2018_TTRS_3]
- Added new firmware for the TS-XW RACER and the TS-PC RACER Racing Wheel:
* TS-XW RACER: Firmware V4
* TS-PC RACER: Firmware V9 (for the base)
[2018_TTRS_2]
- Added support for TM Sim Hub- Added new firmware for the T-GT, T300 and TX Racing Wheel:
* T-GT racing wheel: Firmware V5 (for the base) and V32 (for the wheel)
* T300-series racing wheels: Firmware V29
* TX Racing Wheel: Firmware V54
[2018_TTRS_1]
- Add new firmware for the TS-PC Racer & for the TX Racing Wheel
(added PC compatibility of the TSS Handbrake in sequential mode when it is connected to the DIN port of the TS-PC Racer and TX bases.
In this case the sequential mode is now associated with the wheel's UP and DOWN paddle shifters.
This functionality is already available in the latest firmware of the T-GT base, TS-XW Racer base and T300 base.
Please note that this functionality cannot be supported in the T150 and TMX bases.
[2017_TTRS_7]
- Added new firmware for many Thrustmaster Force Feedback wheels
(support for the Ferrari 250 GTO Wheel / Support for the TH8A Shifter in Gran Turismo Sport when connected to the DIN port of the T-GT base
/ Other minor improvements for all bases)
[2017_TTRS_6]
- Added new firmware for many Thrustmaster Force Feedback wheels
(support for new detachable wheels: TM Sparco® P310 Competition / TM RALLY Sparco® R383 / TM Open Wheel)
[2017_TTRS_5]
- Solved a force feedback issue with TS-PC RACER and TX racing wheels in Forza Motorsport 7 and Forza Horizon 3 for PC
[2017_TTRS_4]
- Solved a force feedback issue with T500RS in DiRT® 4 and DiRT Rally™ for PC
[2017_TTRS_1]
- Addded support for T-GT & TS-XW RACER racing wheels
English
中文 (中国)
Formula Wheel Add-On Ferrari SF1000 Edition - User Manual PC PS4™ PlayStation®5 Xbox One™ Xbox Series X|S™
PC - GENERIC MAPPING – Formula Wheel Add-onPC
Functionality of the screen and the telemetry in games (Formula Wheel Add-On Ferrari SF1000 Edition)PC PS4™ PlayStation®5 Xbox One™ Xbox Series X|S™
The racing wheel's angle of rotation is locked in certain games
